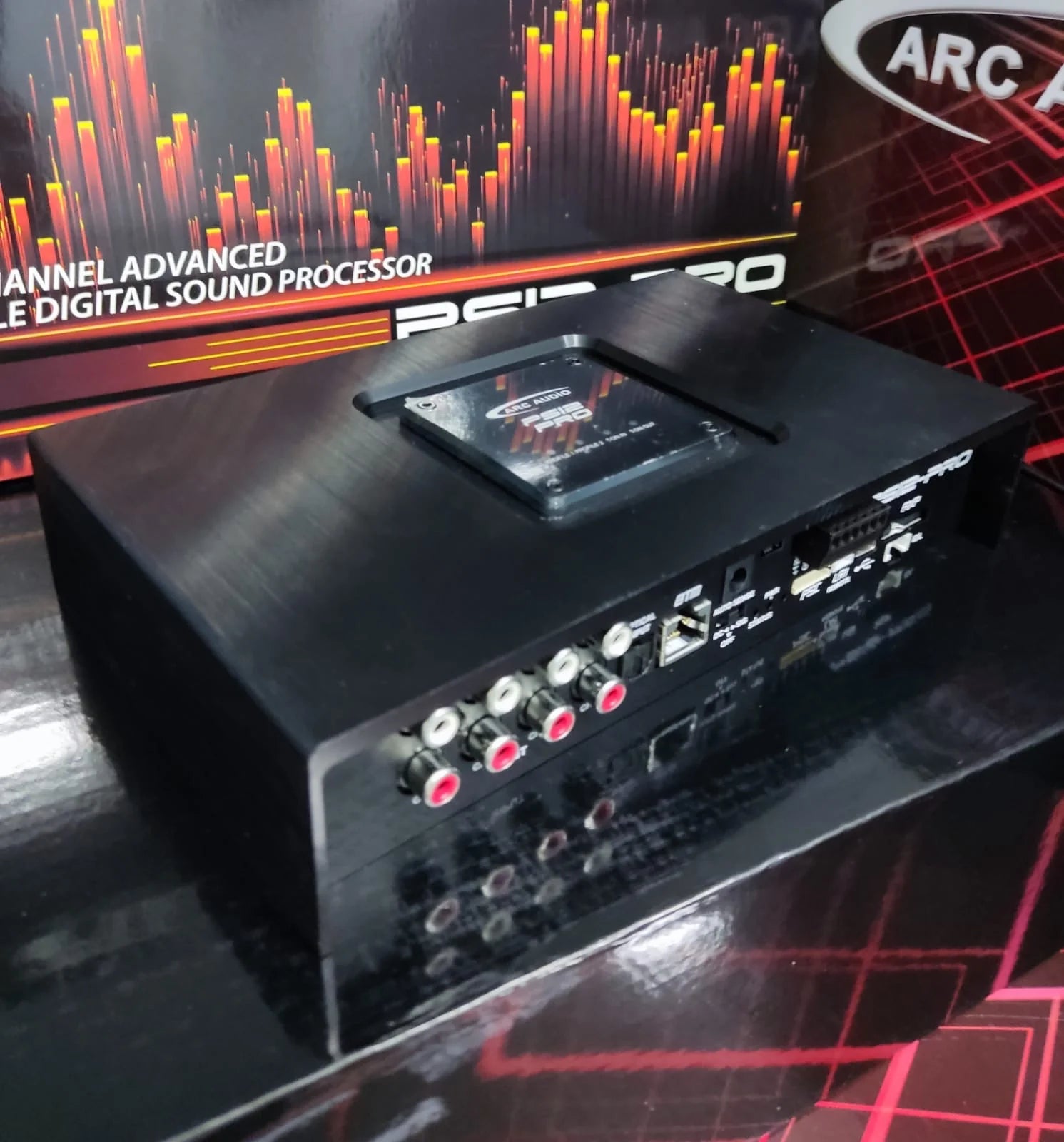

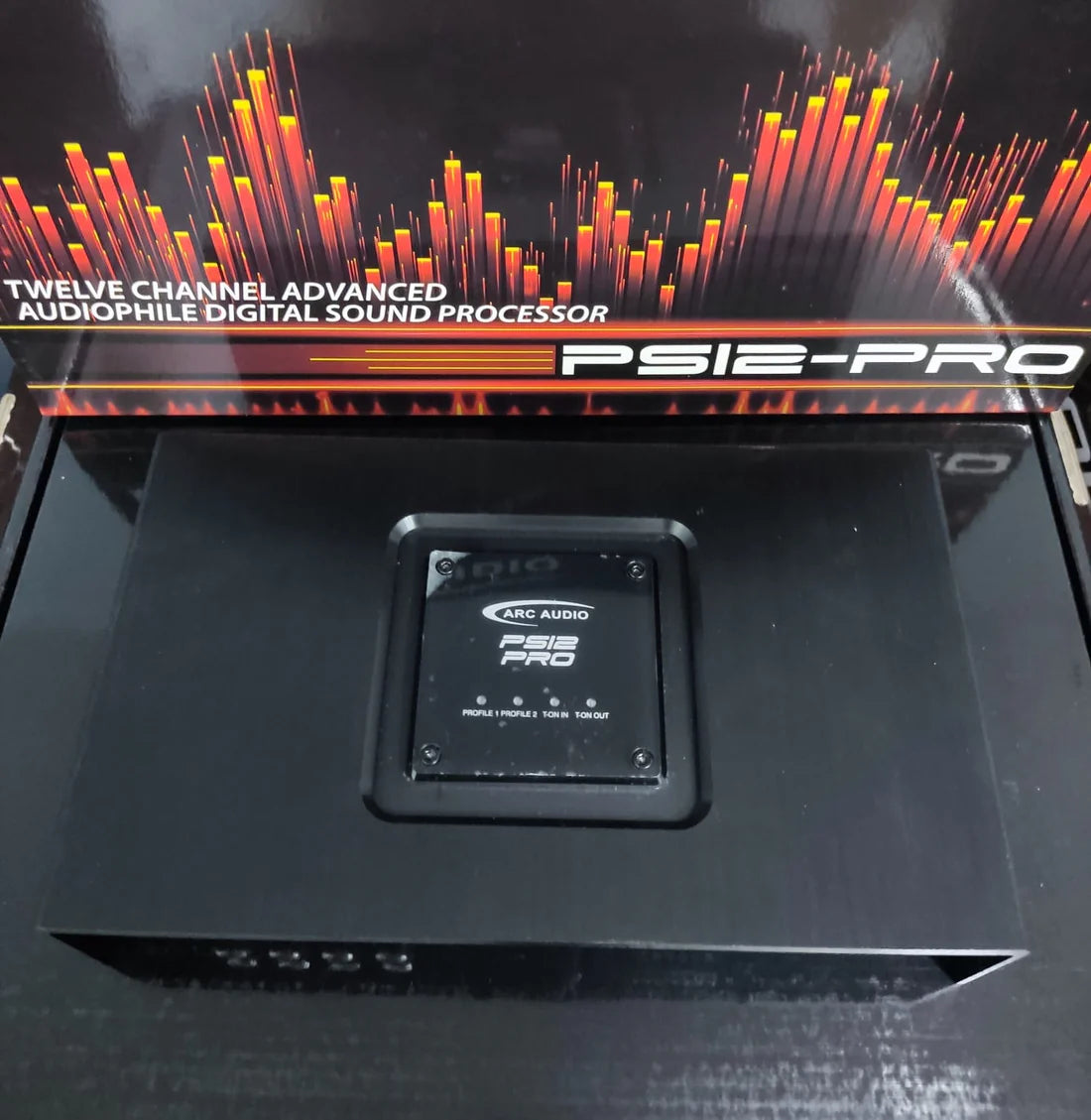

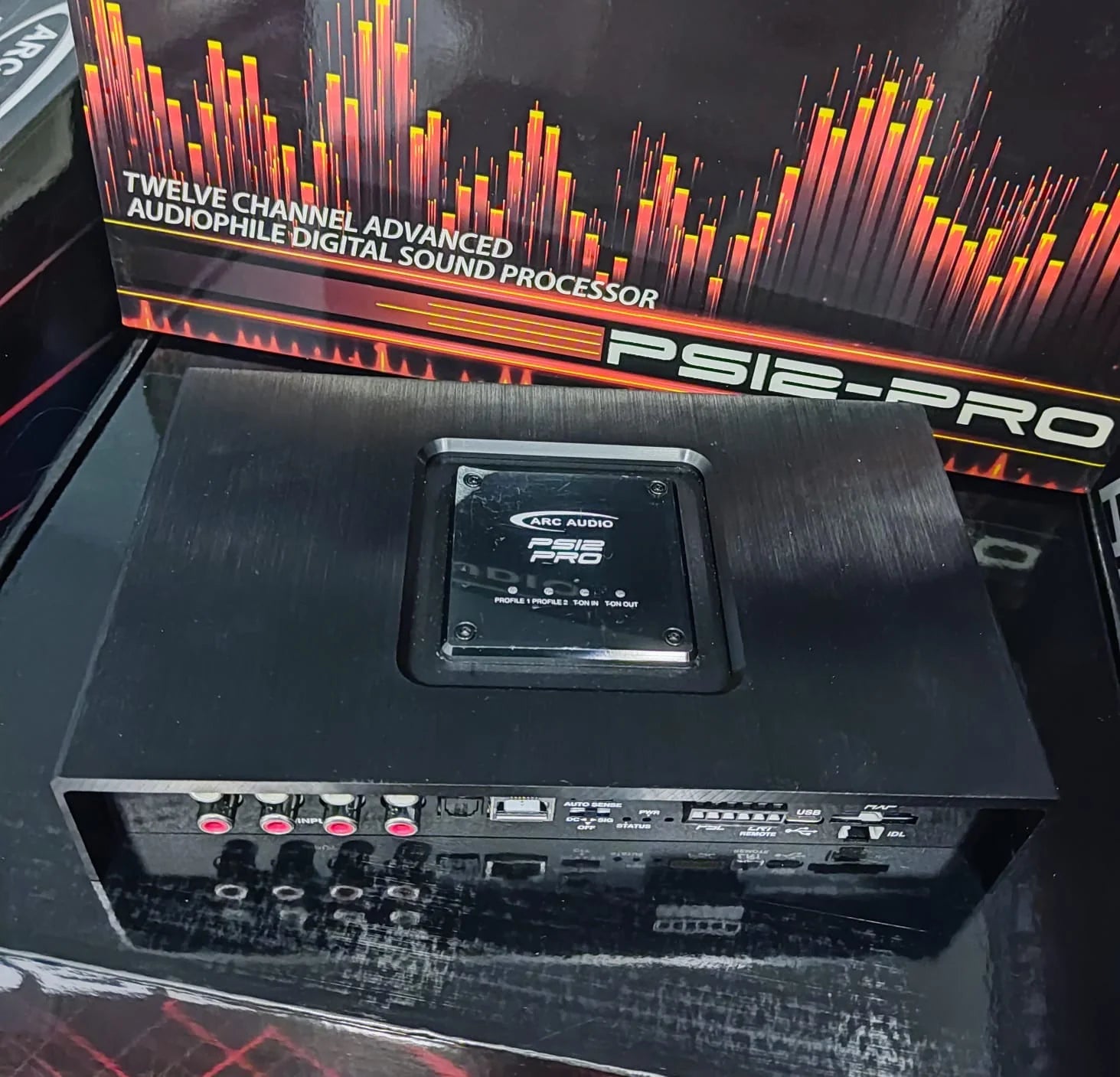

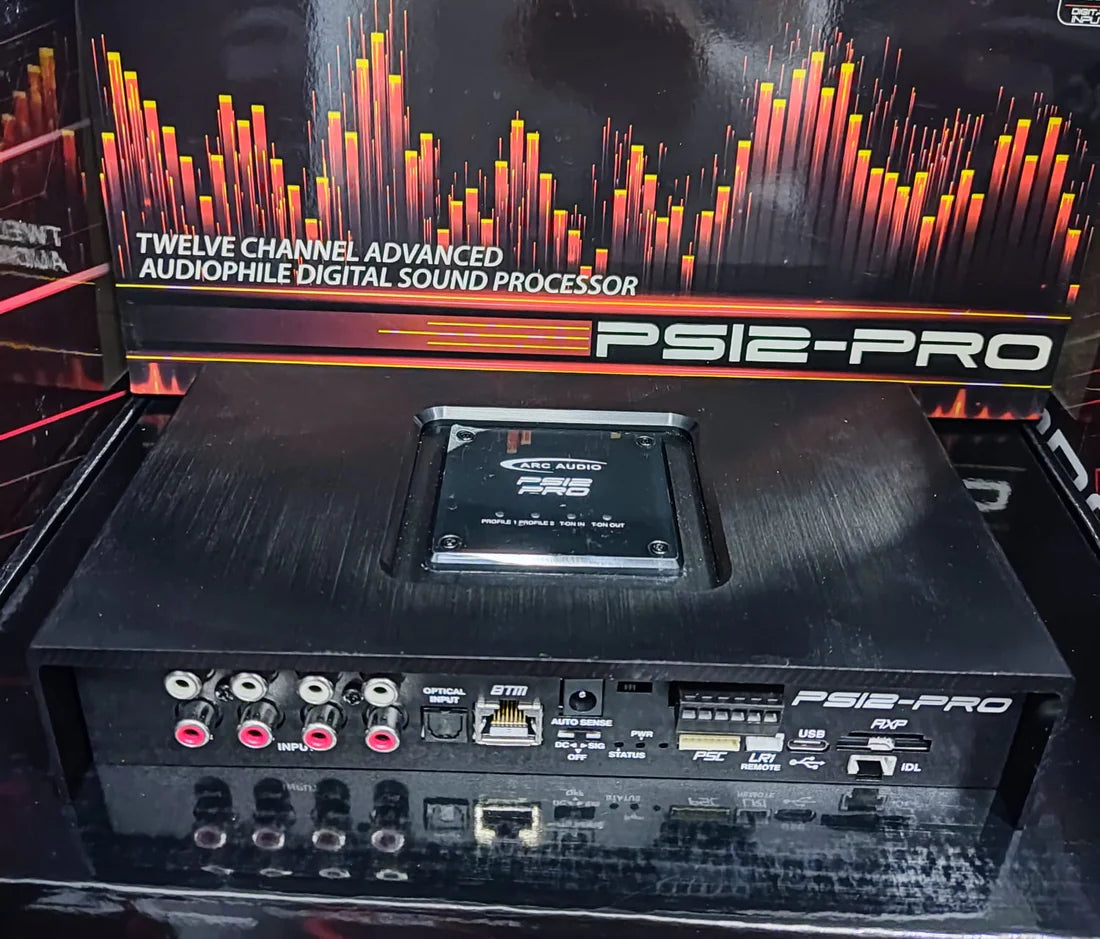

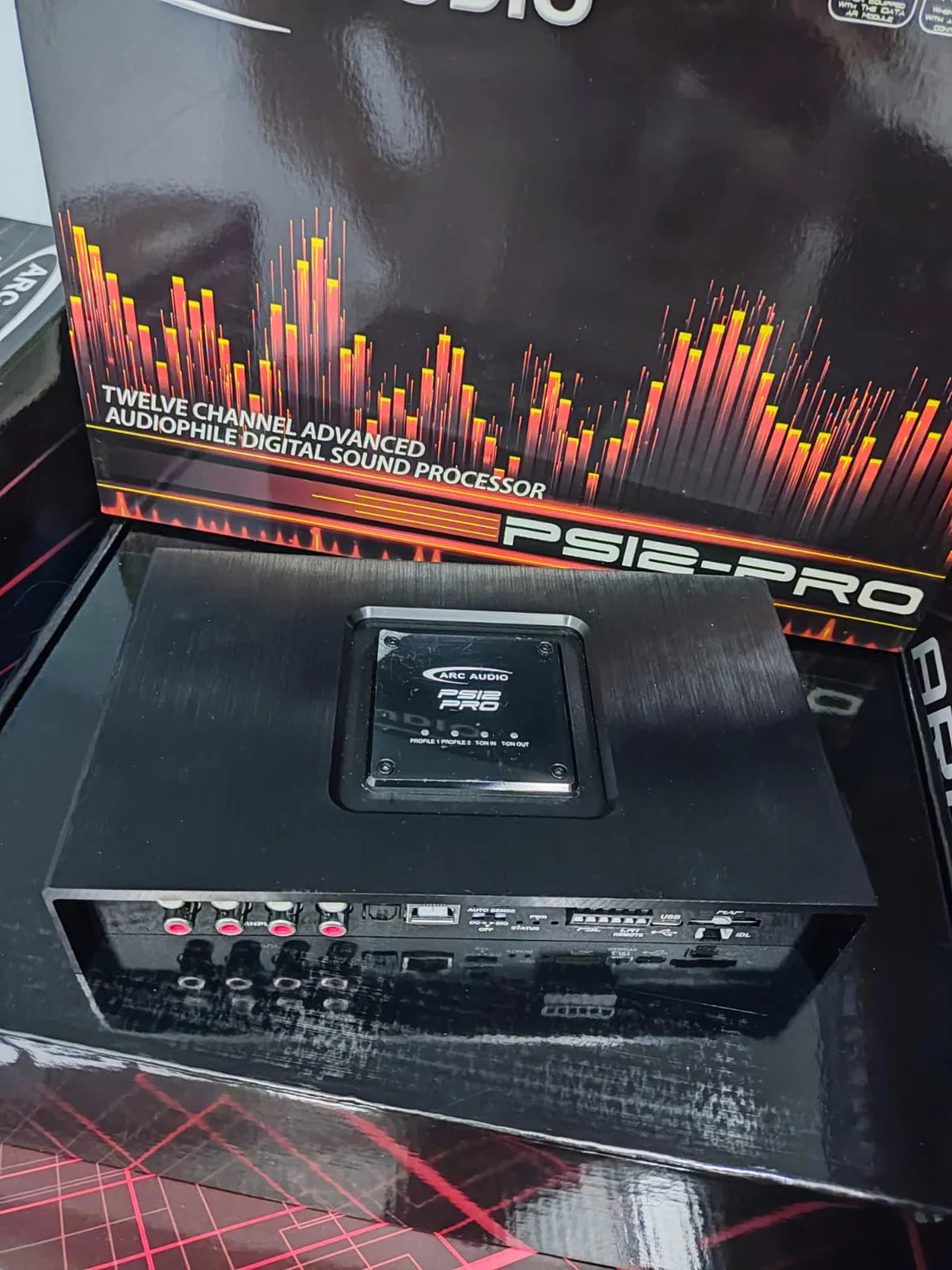

Arc audio ps12 pro

4,799.00 NIS

Processor Type Stand-Alone Unit Processor Resolution Fixed Point Native 32-Bit Main DSP Processor Analog Devices ADAU1462 ADC (Analog to Digital Converter) (Dual) AKM Velvet Sound 5558B DAC (Digital to Analog Converter) AKM Velvet Sound AK4438 Total DSP Channels 12 Dual Footprint Op-Amp Design No RCA Channels Out 12 RCA Output...

sold in last Hour

HURRY! ONLY LEFT IN STOCK

Dresses Size Chart

Dress Size Chart (Inch)
DRESSES
SIZE IN INCHES
SIZE US / CAN BUST WAIST HIPS
XS 0 31"-32" 24"-25" 34"-35"
S 2-4 33"-34" 26"-27" 36"-37"
M 6-8 35"-36" 28"-29" 38"-39"
L 10-12 37"-39" 30"-32" 40"-42"
XL 14 40"-42" 33"-35" 43"-45"
Dress Size Chart (cm)
DRESSES
SIZE IN CM
SIZE US / CAN BUST WAIST HIPS
XS 0 78.7-81.2 60.9-63.5 86.3-88.9
S 2-4 83.8-86.3 66-68.5 91.4-93.9
M 6-8 88.9-91.4 71.1-73.6 96.5-99
L 10-12 93.9-99 76.2-81.2 101.6-106.6
XL 14 101.6-106.6 81.2-88.9 109.2-114.3

Swimwear Size Chart

Dress Size Chart (Inch)
SWIMWEAR
SIZE IN INCHES
SIZE US / CAN BUST WAIST HIPS
XS 0 31"-32" 24"-25" 33"-34"
S 2 33"-34" 26"-27" 35"-37"
M 4 35"-36" 28"-29" 37"-38"
L 6 37"-39" 30"-32" 39"-41"
XL 8 40"-42" 33"-35" 42"-44"

Shoes Size Chart

US EURO UK AUS JAPAN CHINA
5 35-36 3 3.5 21.5 35
5.5 36 3.5 4 22 35.5
6 36-37 4 4.5 22.5 36
6.5 37 4.5 5 23 36.5
7 37-38 5 5.5 23.5 37
7.5 38 5.5 6 24 37.5
8 38-39 6 6.5 24.5 38
8.5 39 6.5 7 25 38.5
9 39-40 7 7.5 25.5 39
9.5 40 7.5 8 26 39.5
10 40-41 8 8.5 26.5 40
11 41-42 9 9.5 27.5 41

Delivery

    All orders shipped with UPS Express.

    Always free shipping for orders over US $250.

    All orders are shipped with a UPS tracking number.

Returns

    Items returned within 14 days of their original shipment date in same as new condition will be eligible for a full refund or store credit.

    Refunds will be charged back to the original form of payment used for purchase.

    Customer is responsible for shipping charges when making returns and shipping/handling fees of original purchase is non-refundable.

    All sale items are final purchases.

Help

Give us a shout if you have any other questions and/or concerns.

Email:

Phone: +1 (23) 456 789

Ask a Question

Real time Visitor right now

Processor Type Stand-Alone Unit
Processor Resolution Fixed Point Native 32-Bit
Main DSP Processor Analog Devices ADAU1462
ADC (Analog to Digital Converter) (Dual) AKM Velvet Sound 5558B
DAC (Digital to Analog Converter) AKM Velvet Sound AK4438
Total DSP Channels 12
Dual Footprint Op-Amp Design No
RCA Channels Out 12
RCA Output Voltage Up to 8V
Input Channels (Analog) 8
Input Channels (Analog Type) Differential (RCA or Speaker Level)
Input Sensitivity (Analog) .5V - 32V RMS
Input Impedance (Analog) 10k Ohms
Input Gain Type "Dedicated" Selection by channel "Pairs" in Input Mixer Utility
Optical Input Toslink
Digital Coaxial Input Yes - Requires D.O.C. Adapter
Max Digital Input Sample Rate 192kHz
Frequency Response 10Hz - 23.5kHz
S/N Ratio 1V 1:1 TBD
S/N Ratio 4V 1:1 TBD
S/N Digital TBD
DSP Operating Voltage 8V - 17.1 (Start Stop Compliant to 4.5V)
Auto-Sense Turn-on Yes - Signal & DC (BTL) (Uses Ch 1/2 Analog Inputs Only)
User Defined Presets Up to 4
Preset Control Without PC Or Controller Yes - Optional Manual Trigger Switches +/- for up to 4 presets (Not Included)
Compatible External Control (Optional) Yes - PSC or LR-2 (Sold Separately)
Dual External Control Use (Optional) Yes - PSC & LR-2 (Simultaneously)
AXP Wifi Control Adapter Card Optional accessory (Sold Separately)
DSP Integrated On/Off Timing Control Device Turn-on (Up to 40ms), Turn on Hold (Up to 40ms), Auto-sense hold time (up to 200ms)
DC Input Jack Yes
External Amplifier Remote "Turn-on Output" On/Off Timing Control Remote Turn on lead output adjustable from .05 - 40 seconds
iDatalink Maestro Amplifier Replacement Interface Capable Yes - Requires Vehicle compatible replacement module & T-Harness and ARC/iData signal harness adapter
iDatalink Maestro Compatibility List Check here
Multi-Processor System Expandability Yes - Requires each processor be connected with a full-time USB connection to a non-amplified USB hub. Also allows for full control of multiple DSPs with a single PC and GUI
Copper Series Matching Trim Package Yes (Optional Sold Separately)
USB Connection Type USB-C
Tuning Software Interface ARC Audio DNA Only
DNA Tuning Software Interface Download Download here
DNA Software Tuning Features Click here for tuning features
Dimensions 8.5"(L) x 5.1"(W) x 1.81"(H)
